Materials of construction: pp chamber, PP plunger outer housing, borosilicate glass plunger inner storage vial, silicone septa with PTFE liner, PP cap
Vial Size: 12 x 32 mm
Pore Size: 0.22um and 0.45um
Unfiltered sample chamber: 500 µL
Filtered sample chamber: 330 µL
Maximum operating temperature: 122°F (50°C)
Minimum filtering sample volume: 220 µL placed into the chamber to obtain a 50 µL filtered sample

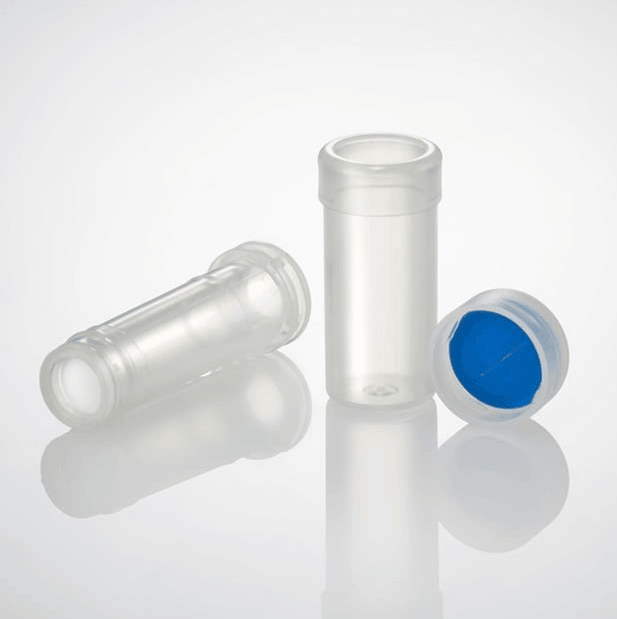

Aijiren filter vials provide a convenient way to filter samples before LC or GC analysis. Filter vials are a fast, economical, and environmentally friendly way to filter samples when you need to filter enough for your analysis, compared to a combination of syringe filters, syringes, autosampler vials, septum, and caps.
Will using Aijiren Filter Vials help me save time vs. traditional sample filtration?
Traditional sample preparation requires multiple steps and transfers before the sample is ready to be injected. Verex Filter Vials reduces sample pretreatment into two steps. Just dispense the sample and compressor filter. Plus, imagine saving extra time because you don’t have to order multiple part numbers.
Which filter pore size should I use for my samples?
For HPLC/UHPLC columns filled with chromatographic media of 3 μm or less, Aijiren filter vial with a 0.2μm filter membrane is recommended. The 0.2μm pore-sized filter membrane provides an effective barrier against unwanted particles entering the system’s flow path. This reduces column clogging, increases column life, and increases system uptime.
For HPLC columns with chromatography media of 4 μm or more, a Verex filter vial with a 0.45 μm filter membrane is recommended.

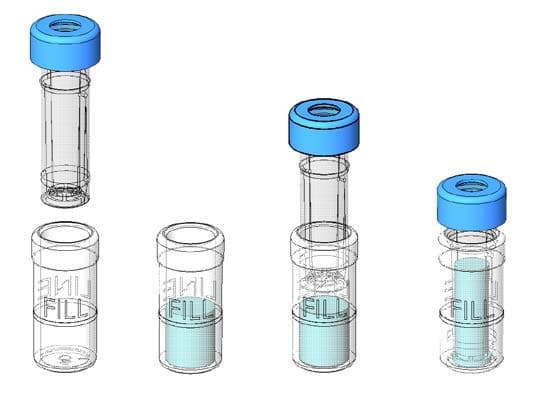

How to Use?
Step1. place your sample in the external vial using a pipette or syringe.

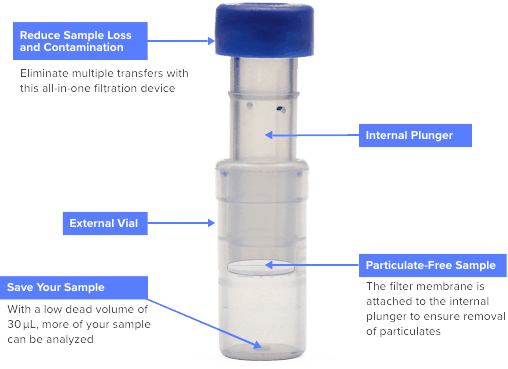

Step2. Compress the internal plunger to push your sample through the filter membrane
Any more knowledge about hplc filter vials welcomes to sharing.
