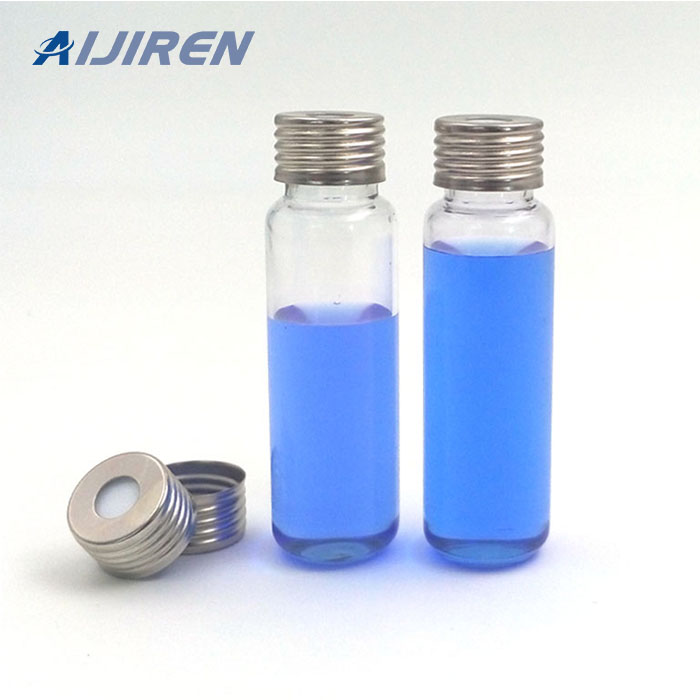

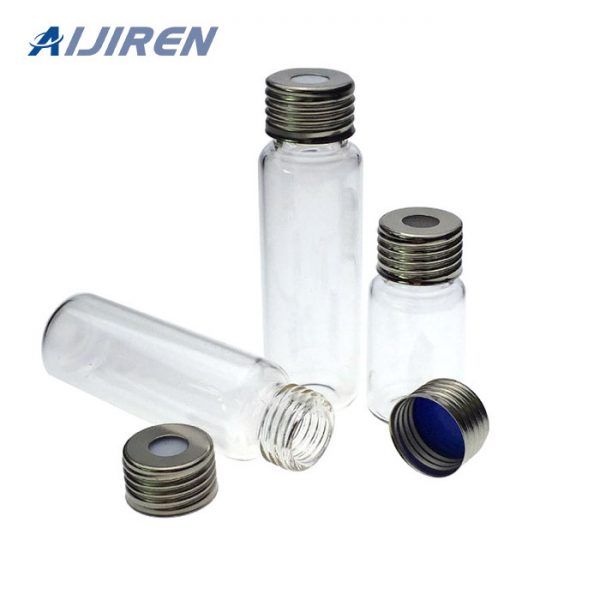

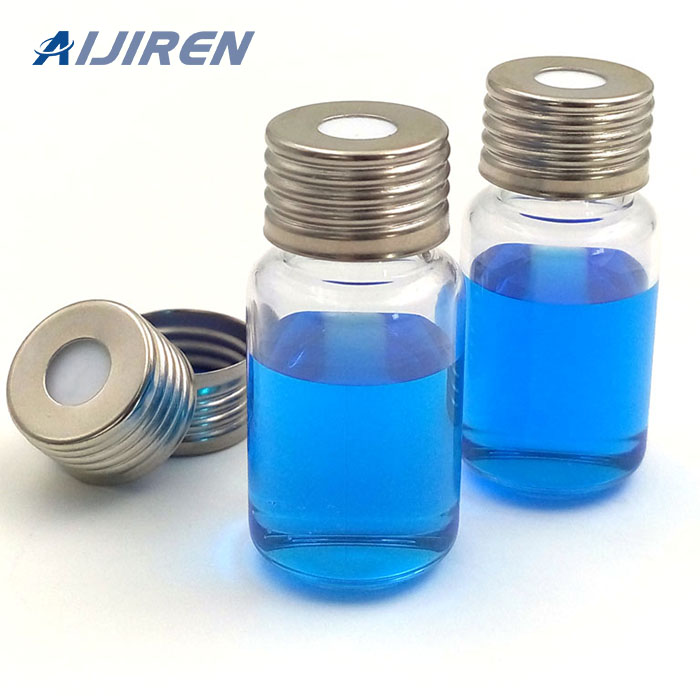

10-20mL 18mm Screw Thread Headspace ND18

Material: USP Type 1, Class A, 33 Borosilicate Glass
Dimensions: 22.5 x 46mm/22.5 x 75mm
Application: GC system
Neck Diameter: 18mm
Qty/Pack: 100pcs/pack
Volume: 10-20ml
Payment: T/T
MOQ: 1 pack

Share:
Introduction
Inquiry
Introduction

Details

Products name 10-20mL 18mm Screw Thread Headspace ND18
Dimension 18mm
Cap Color Silver
Septa details White, Red, Blue, 1.3-1.6mm thickness.
Material Aluminum for Cap, PTFE/Silicone for Septa
Package 100pcs/Pack
Cap type Open top
Septa type Non-slit

Description

Headspace vials from Aijiren Technology, Inc with high quality and favorable price. Zhejiang Aijiren is a manufacturer of Laboratory consumables. We supply autosampler vials, septa and caps at factory price.

18mm Screw Thread Headspace Vials are often used in Shimadzu, Spectral Physics, Varian, and other autosamplers.

18mm Screw Thread top septa is used PTFE and high-quality silicone rubber or ultra-pure silica as raw materials, the gasket is guaranteed to be non-toxic.

1. A rounded bottom is more sturdy and thus more resistant to the high pressure within the vial during the heating process

2. 10ml, 20ml clear or Amber precision thread vial

3. Magnetic screw caps 8mm center hole

4. Septa are blue PTFE sample side; White Silicone outside

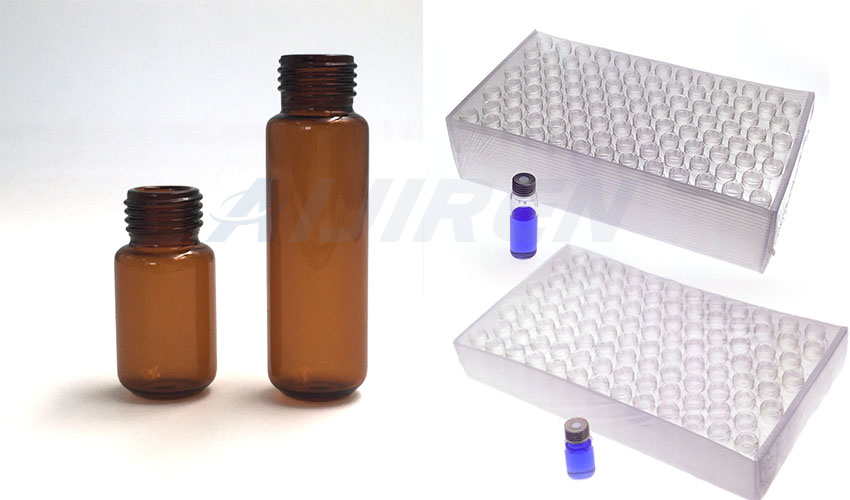

10-20mL Headspace Packing

 Features

1. The precision screw-thread vial always be applied to Agilent, Shimadzu, Tekmar, CTC PAL, Varian, Gerstel, Atas, Thermo Scientific autosamplers.

2. Autosampler vials are produced by high quality raw material which imported from foreign countries. They have the features of excellent high-temperature and corrosion resistance.

3. Caps are made of high quality aluminum precise manufacturing tolerances, well-controlled Manufacturing environment.

4. Septa are produced by high quality material to ensure proper functions The septa are designed for single injection or a long time between injections. Temperature resistance – 60℃ to 200℃.

5. Magnetic precision screw-thread metal cap is combined with the ideas of innovation and time-saving and convenient together.

6. The method of patent to produce chemical inert cap is to integrate the cap and the septa together at the molecular level, which can avoid excessive evaporation and keep the sample bottle proper sealing.

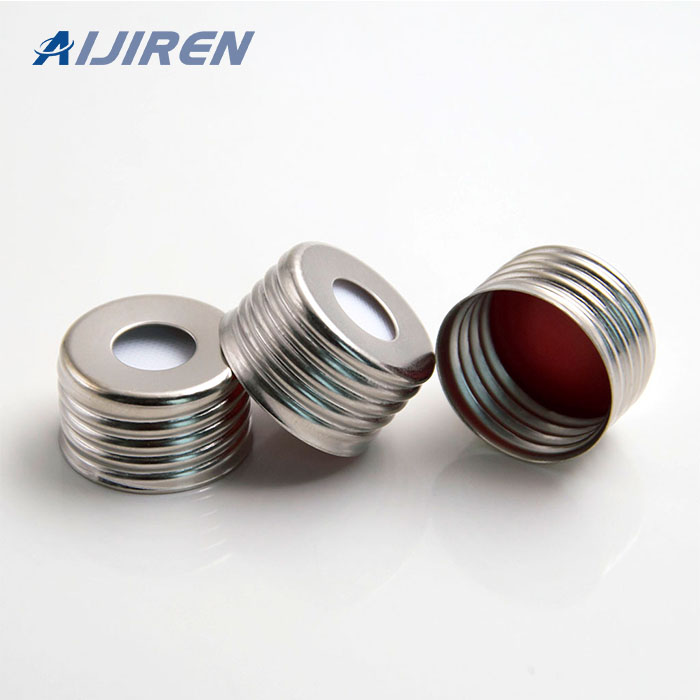

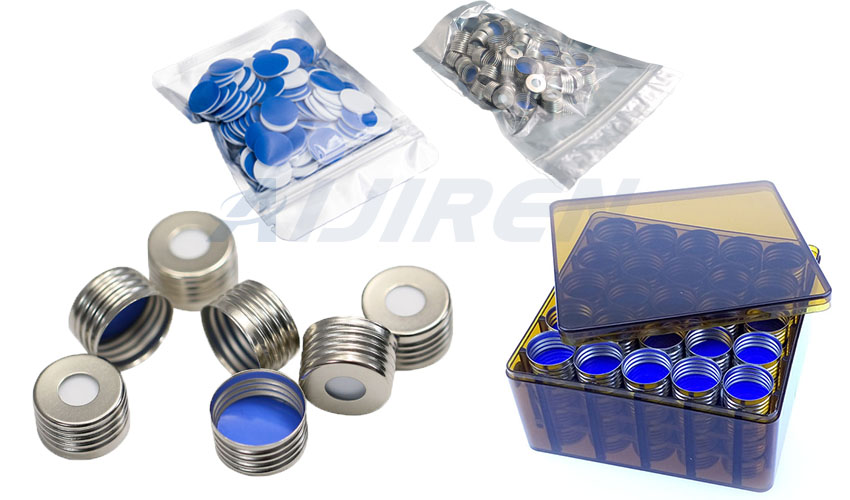

Screw Caps&Septa

 Technical Paramete

1. 18mm Screw Thread Headspace Vials ND18

Part No. VA101 VA1035 VA201 VA2035
Description 10mL
Clear Precision Screw
Headspace Vial,
Round Bottom,
22.5*46mm, 5.0 type
10mL
Amber Precision Screw
Headspace Vial,
Round Bottom,
22.5*46mm, 5.0 type
20mL
Clear Precision Screw
Headspace Vial,
Round Bottom,
22.5*75.5mm, 5.0 type
20mL
Amber Precision Screw
Headspace Vial,
Round Bottom,
22.5*75.5mm, 5.0 type

2. 18mm Screw Thread Headspace Caps With Septa

Part No. SACA001 SACA002-II SACA003-II CA001 SA001 SA002-II SA003-II
Description Blue PTFE/White Silicone Septa,
13mm Black Screw Polypropylene Cap,
8.5mm Centre Hole
Red PTFE/White Silicone Septa,
18mm Magnetic Precision
Screw Metal Cap,
8mm Centre Hole
White PTFE/Blue Transparent
Silicone Septa,
18mm Magnetic Precision
Screw Metal Cap,
8mm Centre Hole
Magnetic Precision
Screw Metal Cap,
8mm Centre Hole Φ18mm
Blue PTFE/White
Silicone Septa
Φ 17.5*1.5mm
Red PTFE/White
Silicone Septa
Φ 17.5*1.3mm
Easy to puncture
NEW TYPE
White PTFE/Blue
Transparent Silicone
Septa Φ 17.5*1.3mm
Easy to puncture
NEW TYPE
